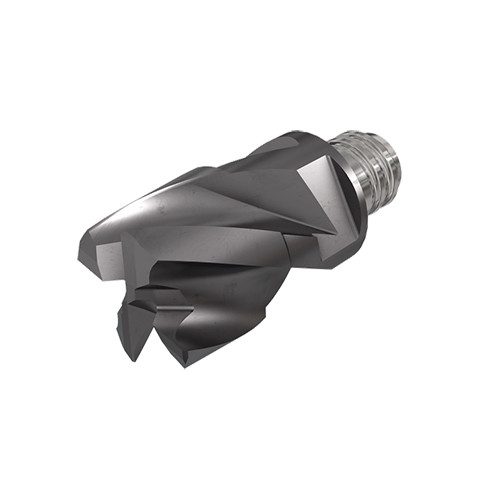

MM EFCB140A11-4T08 IC908
End Mill Head; 14 mm Dia. × 11.5 mm LOC × 12 mm Shank Dia. × 35.95 mm OAL ; 4 FL ; T08 ; Carbide ; TiAlN ; IC908

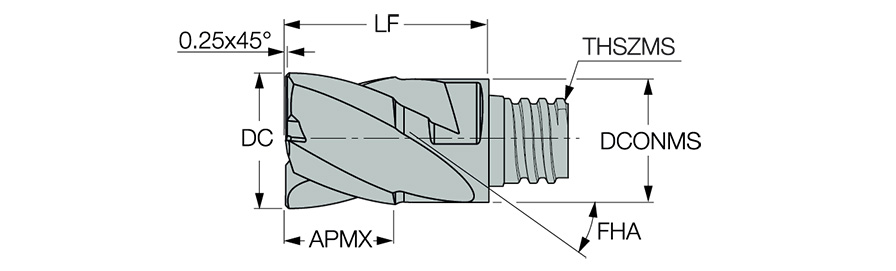

| Application | | Drill Mill | Drilling | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Diameter (DC) | 14 mm | Corner Chamfer Width (CHW) | 0.25 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.05 mm/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 11.5 mm | Ramping Angle Maximum (RMPX) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 28 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 35.95 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Coating | TiAlN |
Product Features
| Family Description | Interchangeable 4 flute 30° helix solid carbide heads for flat counter boring. | Country of Origin | Israel |
| Remarks | 0.06 mm maximum concavity on the tool's bottom For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.099
