MM EC160B12R1.0-8T10 IC908

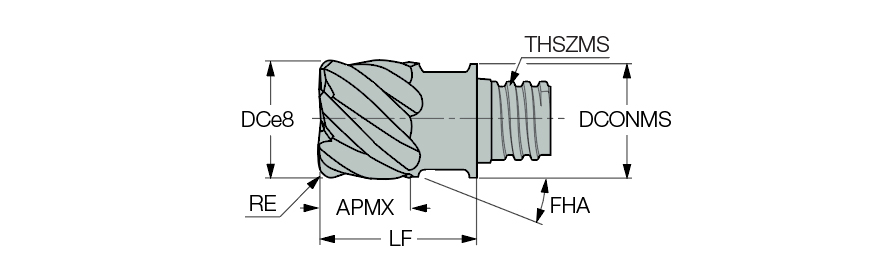

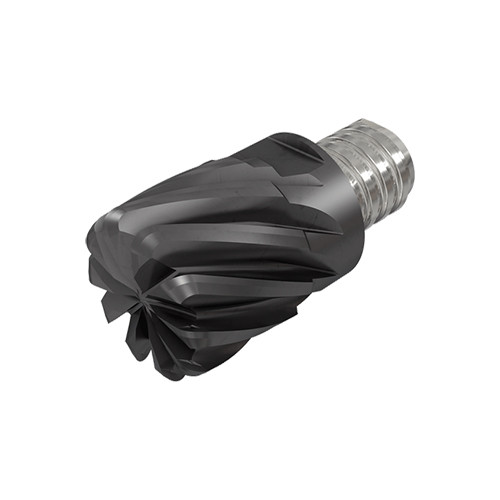

End Mill Head; 16 mm Dia. × 12 mm LOC × 15.3 mm Shank Dia. × 32.25 mm OAL ; 8 FL ; T10 ; Carbide ; TiAlN ; IC908
| Application | | Rampdown | Shouldering | | Coating | TiAlN |
| Cutting Diameter (DC) | 16 mm | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 8 | Measurement Type | Metric |
| Corner Radius (RE) | 1 mm | Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 16 mm | End Shape | 90° |
| Depth of Cut Maximum (APMX) | 12 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 15.3 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Functional Length (LF) | 20.5 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 32.25 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC908 | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
Product Features
| Family Description | Interchangeable 8, 10 flute 30°, 45° helix solid carbide endmill heads with corners with different radius | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threa ded connection |
Shipping Info
Package Weight
0.137
