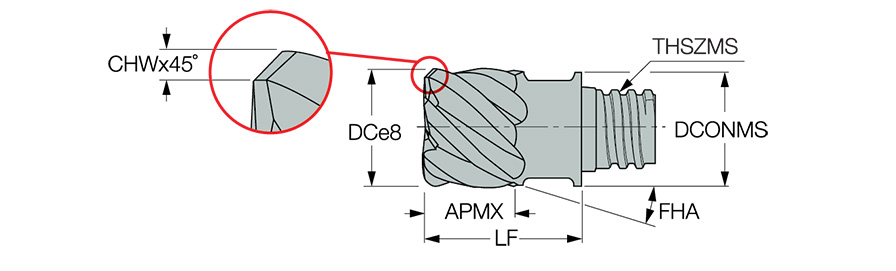

MM EC200D15C02-10T12 IC903
End Mill Head; 20 mm Dia. × 15 mm LOC × 18.45 mm Shank Dia. × 39.3 mm OAL ; 10 FL ; T12 ; Carbide ; AlTiN ; IC903
| Application | | Helical Interpolation | Rampdown | Shouldering | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Diameter (DC) | 20 mm | Corner Chamfer Width (CHW) | 0.2 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 10 | Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 20 mm | End Shape | 90° |
| Depth of Cut Maximum (APMX) | 15 mm | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Connection Diameter Machine Side (DCONMS) | 18.45 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Functional Length (LF) | 25.5 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 50 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 39.3 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Grade | IC903 | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Coating | AlTiN |
Product Features
| Family Description | Interchangeable 6, 8,10 flute solid carbide endmill heads with 50° Helix for machining hardened steel (up to 65 HRC) | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threa ded connection |
Shipping Info
Package Weight
0.301
