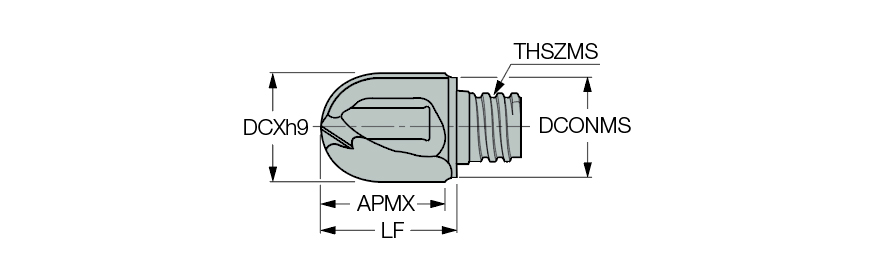

MM HCR080-2T05 IC908
End Mill Head; 8 mm Dia. × 7.8 mm LOC × 7.6 mm Shank Dia. × 17.05 mm OAL ; 2 FL ; T05 ; Carbide ; TiAlN ; IC908
| Application | | Profiling | | Overall Length (OAL) | 17.05 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC908 |
| Flute Count (NOF) | 2 | Coating | TiAlN |
| Corner Radius (RE) | 4 mm | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 8 mm | End Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 7.8 mm | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 7.6 mm | Body Material | Carbide |
| Functional Length (LF) | 9.95 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 6 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide 2 flute, ball nose milling heads | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.028
