MM ERA.375B23R008-3T06 08 IC08

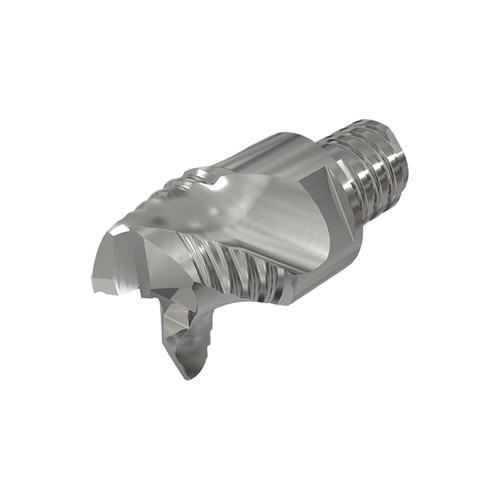

End Mill Head; 3/8″ Dia. × 1/4″ LOC × 0.36″ Shank Dia. × 0.772″ OAL ; 3 FL ; T06 ; Carbide ; Uncoated ; IC08
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Grade | IC08 |

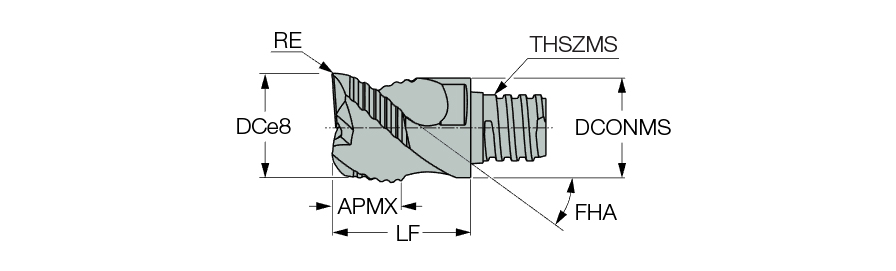

| Cutting Diameter (DC) | 3/8″ | Coating | Uncoated |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Corner Radius (RE) | 0.008″ | Maximum Feed per Tooth (fz(max)) | 0.008 ″/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 0″ | End Shape | 90° Alum |
| Depth of Cut Maximum (APMX) | 1/4″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.36″ | Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 0.51″ | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Overall Length (OAL) | 0.772″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
Product Features
| Family Description | Interchangeable solid carbide rough milling heads for machining aluminum at high metal removal rates | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.042
