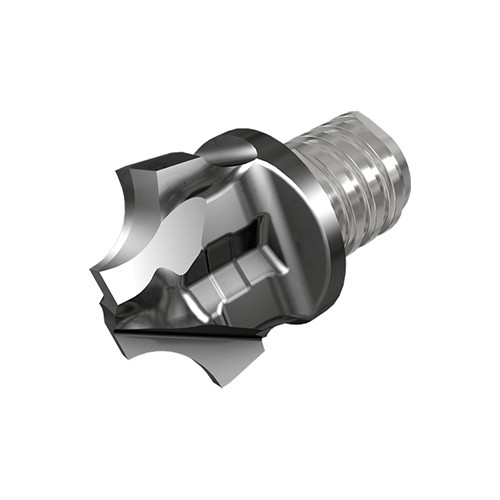

MM HR2.5/094-5.1-2T06 IC908
End Mill Head; 0.201″ Dia. × 0.374″ LOC × 0.374″ Shank Dia. × 0.754″ OAL ; 2 FL ; T06 ; Carbide ; TiAlN ; IC908

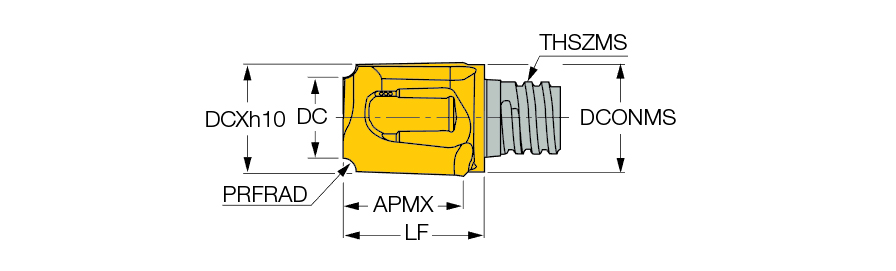

| Application | | Corner Rounding | | Overall Length (OAL) | 0.754″ |
| Cutting Diameter (DC) | 0.201″ | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0984″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Tool Type | Solid corner rounding endmills |
| Cutting Diameter Maximum (DCX) | 0.394″ | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.374″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Connection Diameter Machine Side (DCONMS) | 0.374″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 0.492″ |
Product Features
| Family Description | Interchageable 2 flute solid carbide corner round milling heads | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.072
