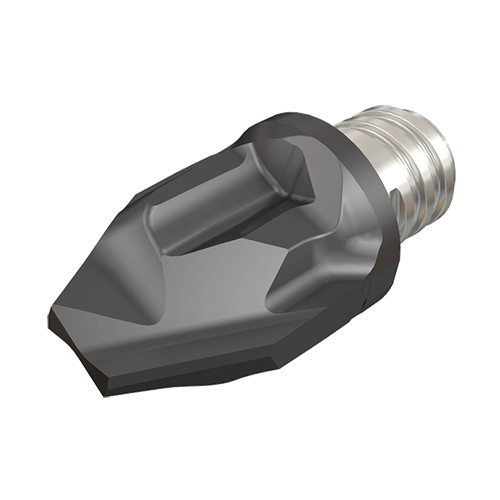

MM HCF100-060-2T06 IC908
End Mill Head; 0.157″ Dia. × 0.204″ LOC × 0.374″ Shank Dia. ; 2 FL ; T06 ; Carbide ; TiAlN ; IC908
| Application | | Chamfering | Countersinking | Slanted Shoulder & Chamfer | | Grade | IC908 |

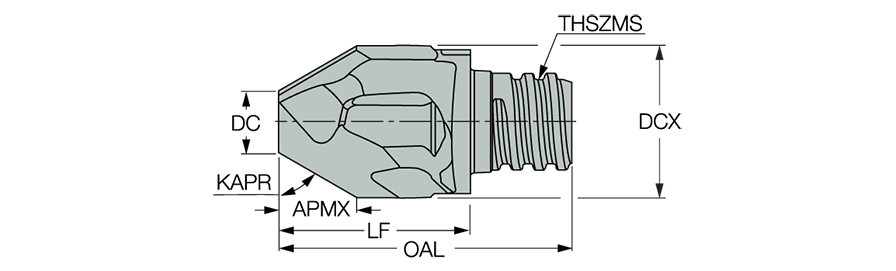

| Cutting Diameter (DC) | 0.157″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 60 Degrees |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 0.394″ | Tool Type | Solid chamfering endmills |
| Depth of Cut Maximum (APMX) | 0.204″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.374″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Functional Length (LF) | 1/2″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 0.761″ |
Product Features
| Family Description | Interchangeable 2 flute, solid carbide chamfering head with a MULTI-MASTER adaptation. | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the threaded connection. For tightening torque click on More Info. |
Shipping Info
Package Weight
0.036
