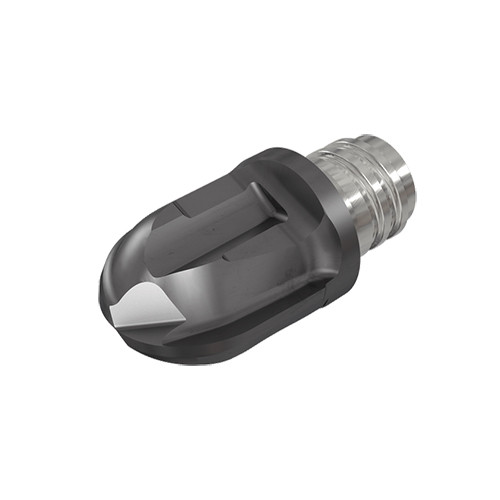

MM HCR.500-2T08 IC908
End Mill Head; 1/2″ Dia. × 0.508″ LOC × 0.48″ Shank Dia. × 0.958″ OAL ; 2 FL ; T08 ; Carbide ; TiAlN ; IC908
| Application | | Profiling | | Overall Length (OAL) | 0.958″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC908 |
| Flute Count (NOF) | 2 | Coating | TiAlN |
| Corner Radius (RE) | 1/4″ | Measurement Type | Inch |

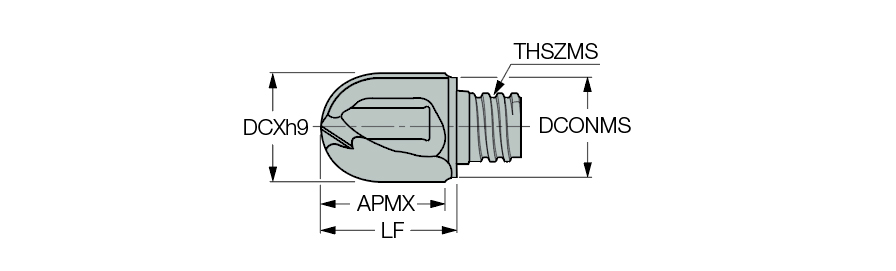

| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 1/2″ | End Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 0.508″ | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Body Material | Carbide |
| Functional Length (LF) | 0.646″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Flute Helix Angle (FHA) | 5 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide 2 flute, ball nose milling heads | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.06
