49D-1015TURQ03 IN2005

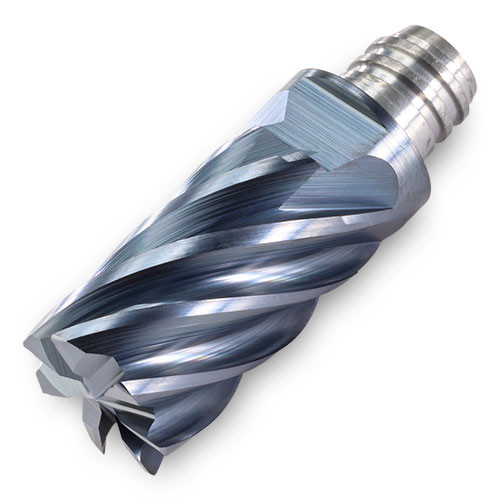

End Mill Head; 1″ Dia. × 1-1/2″ LOC × 0.7″ Max Depth × 0.941″ Shank Dia. × 1.098″ OAL ; 9 FL
| Cutting Diameter (DC) | 1″ | Flute Helix Angle (FHA) | 36 Degrees |
| Flute Count (NOF) | 9 | Overall Length (OAL) | 1.098″ |
| Corner Radius (RE) | 0.031″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Ramping Angle Maximum (RMPX) | 1 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.941″ | Body Material | Steel |
| Functional Length (LF) | 2.067″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
Product Features
| Family Description | Ideal for finishing! | Country of Origin | Israel |
Shipping Info
Package Weight
0.758
