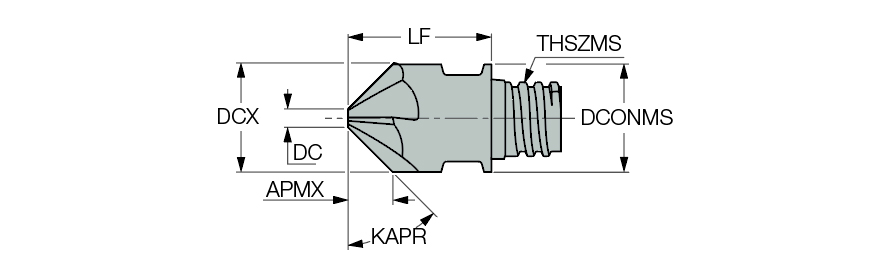

MM ECF45-080-4T05 IC908
| Application | | Chamfering | Countersinking | Slanted Shoulder & Chamfer | | Grade | IC908 |
| Cutting Diameter (DC) | 1.95 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 8 mm | Tool Type | Solid chamfering endmills |
| Depth of Cut Maximum (APMX) | 3 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Functional Length (LF) | 10 mm | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide heads for chamfering and countersinking | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.031
