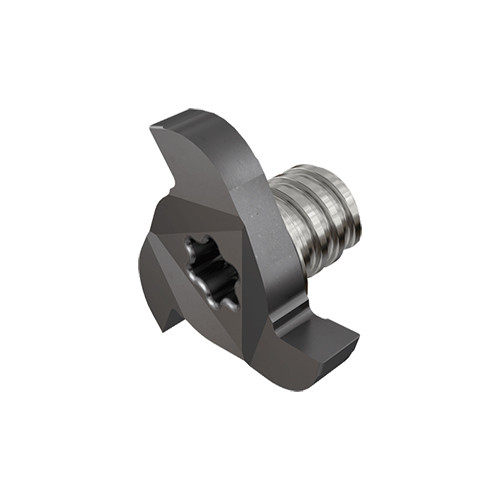

MM GRIT18K140-005-3T6 IC908
End Mill Head; 0.697″ Dia. × 0.15″ Max Depth × 0.34″ OAL ; 3 FL ; T06 ; Carbide ; TiAlN ; IC908
| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Overall Length (OAL) | 0.34″ |

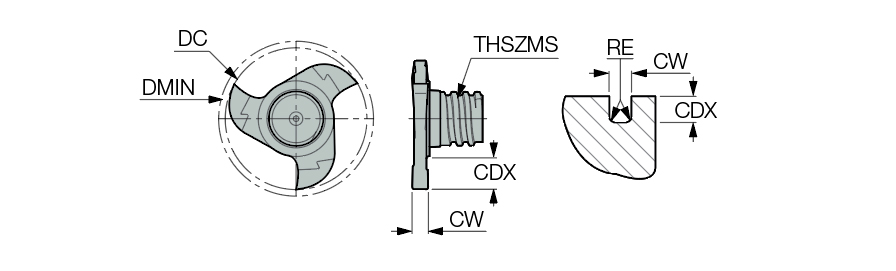

| Cutting Diameter (DC) | 0.697″ | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Corner Radius (RE) | 0.002″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Body Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.15″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Cutting Width (CW) | 0.055″ | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads. "K" for general steel machinin, "P" Positive geometry for soft and gummy materials. | Country of Origin | Israel |
| Remarks | For clamping instructions, click on More Info. Modification options on request. Recommended for O-rings and retaining rings. Do not apply lubricant to the threaded connection. K-Type - For general steel machining. P-Type - Positive geometry for soft and gummy materials. |
Shipping Info
Package Weight
0.03
