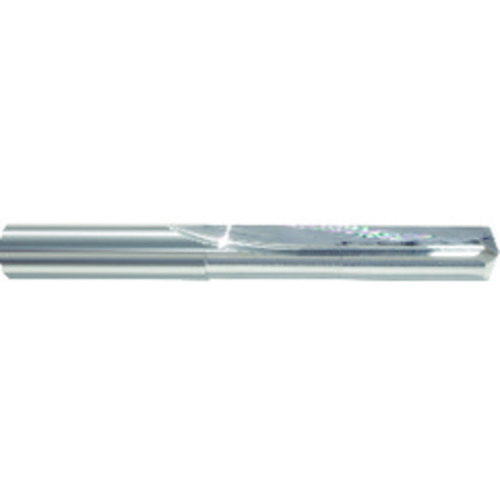

12.5 mm Dia. × 12.5 mm Shank × 2-3/16″ Flute Length × 3-11/16″ OAL, Straight Flute, 140°, AlTiN, 2 Flute, External Coolant, Round Solid Carbide Drill Series/List #5376T
| Drill Bit Size / Cutting Diameter (DC) | 12.5 mm | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.4921″ | Point Shape | Notch |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12.5 mm | Measurement Type | Metric |
| Length Group | Straight Flute | Series/List # | 5376 |
| Coating | TiAlN | Usable Length (LU) | 2-3/16″ |
| Connection Diameter Machine Side (DCONMS) | 12.5 mm | Length Chip Flute (LCF) | 2-3/16″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 3-11/16″ |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.50000
Package Height
.50000
Package Weight
0.33
