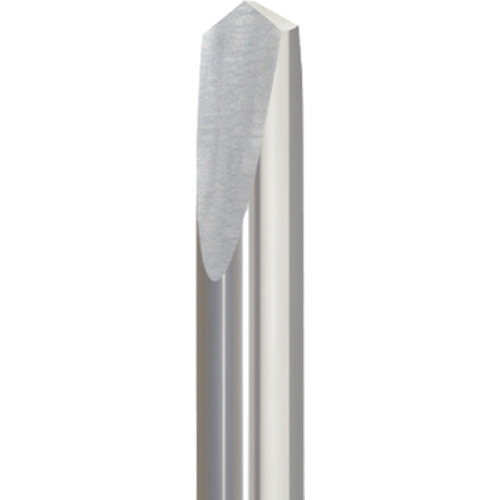

7/64 CARB SPADE DRILL
SC Drill; 7/64″ Dia. × 7/64″ Shank Dia. × 1-1/2″ OAL × 7/16″ LCF ; 118 Degrees ; Regular ; Uncoated ; Series 400
| Drill Bit Size / Cutting Diameter (DC) | 7/64″ | Grade | C-2 Sub-Micron |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 7/64″ | Point Shape | Drill Point |
| Decimal Equivalent | 0.1094″ | Measurement Type | Inch |
| Length Group | Regular | Series/List # | 400 |
| Coating | Uncoated | Length Chip Flute (LCF) | 7/16″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Overall Length (OAL) | 1-1/2″ |
| Application | Drilling | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 7/64″ | Cutting Direction (HAND) | Right Hand |
| Point Angle (SIG) | 118 Degrees | Single / Double End | Single End |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.010
