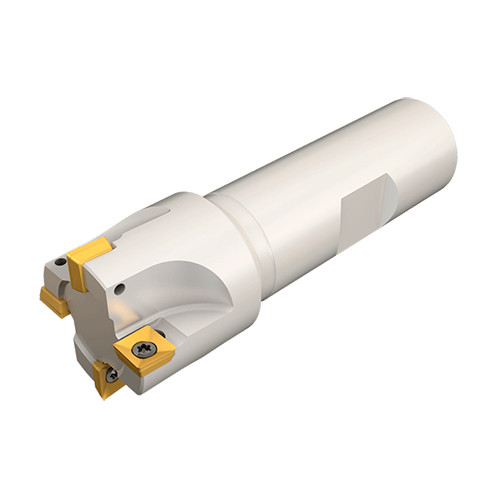

E90X D.50-W .50-06
Indexable End Mill; 1/2″ Dia. × 0.22″ LOC × 1/2″ Shank Dia. × 2-3/4″ OAL × 0.87″ LU ; 1 FL ; Weldon Shank ; 90 Degrees

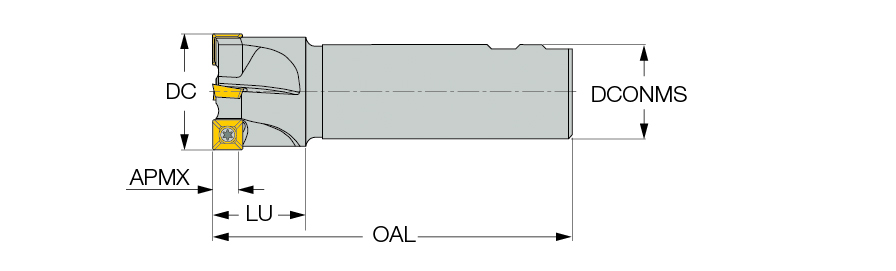

| Cutting Diameter (DC/DCX) | 1/2″ | Functional Length (LF) | 1.859″ |
| Cutting Diameter (DC) | 1/2″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 1 | Usable Length (LU) | 0.87″ |
| Depth of Cut Maximum (APMX) | 0.22″ | Flute Count (NOF) | 1 |
| Overall Length (OAL) | 2-3/4″ | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | SOMT 060204-HQ | Body Material | Steel |
| Weight of Item (WT) | 0.13 Lbs | Connection Code Machine Side (CCMS) | Weldon |
| Head Length (LH) | 0.87″ |
Product Features
| Family Description | Endmills carrying square Q/S/XOMT inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
0.256
