E30 D .62-W .75

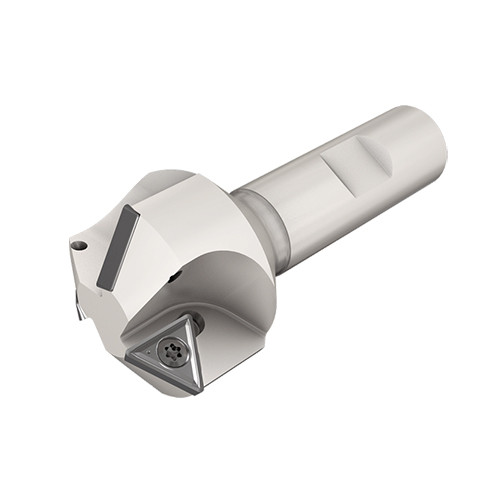

Indexable End Mill; 5/8″ Dia. × 0.27″ LOC × 3/4″ Shank Dia. × 3.54″ OAL ; Weldon Shank ; 30 Degrees

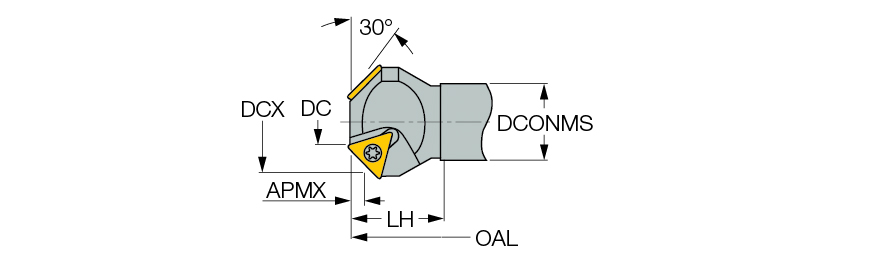

| Cutting Diameter (DC/DCX) | 5/8″ | Head Length (LH) | 1.51″ |
| Cutting Diameter (DC) | 5/8″ | Functional Length (LF) | 2.524″ |
| Cutting Item Count (CICT) | 3 | Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 0.27″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3.54″ | Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Measurement Type | Inch |
| Application | | Countersinking | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | TPMT 2 | Cutting Diameter Maximum (DCX) | 1.61″ |
| Weight of Item (WT) | 0.63 Lbs |
Product Features
| Family Description | 30° chamfering endmills. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
0.815
