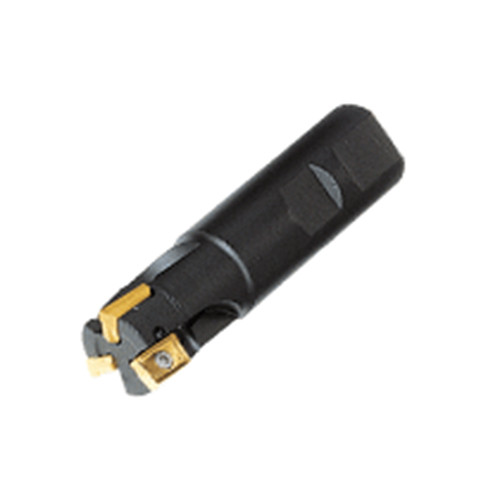

3M E90AX D125-4-W125-13-C
Indexable End Mill; 1-1/4″ Dia. × 1/2″ LOC × 1-1/4″ Shank Dia. × 4″ OAL × 1.44″ LU ; 4 FL ; Weldon Shank ; 90 Degrees

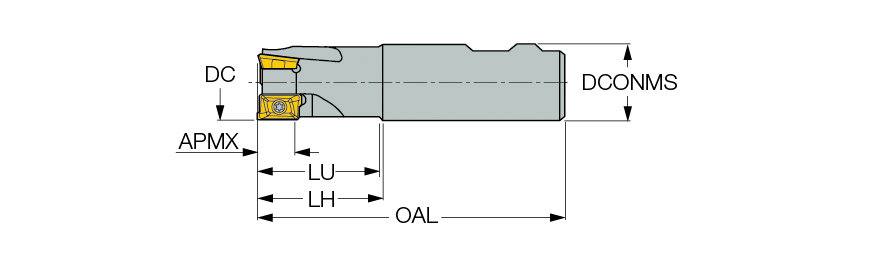

| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 1-1/2″ |
| Cutting Diameter (DC) | 1-1/4″ | Functional Length (LF) | 2.859″ |
| Cutting Item Count (CICT) | 4 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 1/2″ | Usable Length (LU) | 1.44″ |
| Overall Length (OAL) | 4″ | Flute Count (NOF) | 4 |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Counter Boring | Facing | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | 3M AXKT 1304PDR | Body Material | Steel |
| Weight of Item (WT) | 1.14 Lbs | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | 90° endmills heavy duty pocket design: dovetail section carrying inserts with helical cutting edge and positive rake angle. Enable a secure clamping and high durability in rough applications. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info Reduce feed by 50% during engagement and exit from the workpiece |
Shipping Info
Package Weight
1.322
