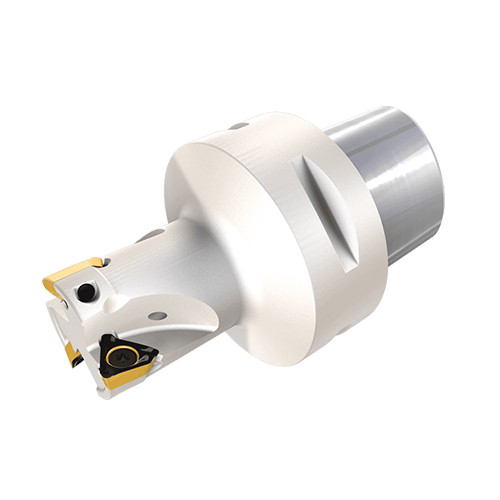

HM390 ETP D25-3-L39-C3-10
Indexable End Mill; 0.984″ Dia. × 0.315″ LOC × 1.26″ Shank Dia. × 2.913″ OAL × 1.54″ LU ; 3 FL ; CAMFIX Shank ; 90 Degrees

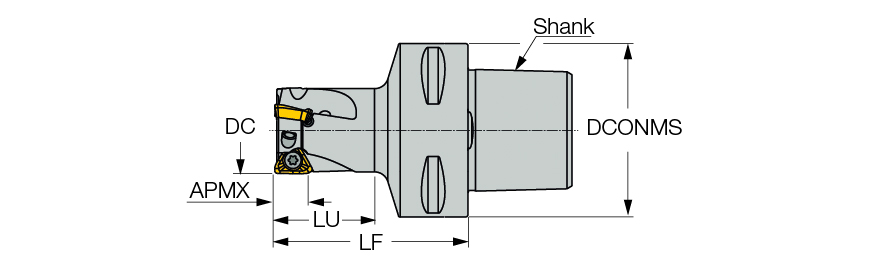

| Cutting Diameter (DC/DCX) | 0.984″ | Functional Length (LF) | 2.165″ |
| Cutting Diameter (DC) | 0.984″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 | Usable Length (LU) | 1.54″ |
| Depth of Cut Maximum (APMX) | 0.315″ | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 2.913″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | CAMFIX | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.9 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TPKT 1003PDR | Connection Code Machine Side (CCMS) | CAMFIX |
| Weight of Item (WT) | 0.46 Lbs |
Product Features
| Family Description | 90° endmills with CAMFIX (ISO 26623-1 standard) tapered shanks, carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges | Country of Origin | Israel |
| Remarks | When installing inserts with a corner radius greater than .079, modify the tool body by rounding the corner of the insert pocket, as detailed in More Info |
