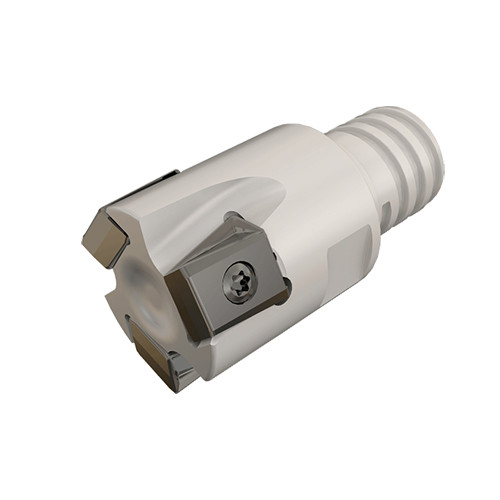

T490 ELN D.62-2-MMT10
Indexable End Mill; 5/8″ Dia. × 0.315″ LOC × 0.57″ Shank Dia. × 1.232″ OAL ; 2 FL ; 90 Degrees

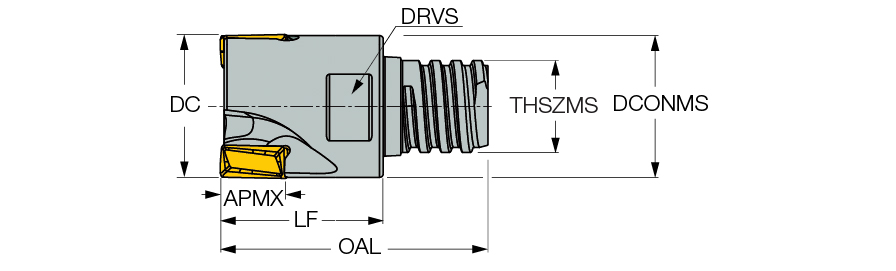

| Cutting Diameter (DC/DCX) | 5/8″ | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 5/8″ | Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Cutting Item Count (CICT) | 2 | Drive Size (DRVS) | 0.512″ |
| Depth of Cut Maximum (APMX) | 0.315″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 1.232″ | Coolant Supply Property (CSP) | External |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.57″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | T490 LNMT 0804PNR | Body Material | Steel |
| Weight of Item (WT) | 0.06 Lbs | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 0.78″ |
Product Features
| Family Description | HELITANG, 90° endmills with a MULTI-MASTER threaded adaptation carrying T490 LNMT/LNHT 08... tangentially clamped inserts with 4 helical, 8 mm long cutting edges. | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection |
Shipping Info
Package Weight
0.148
