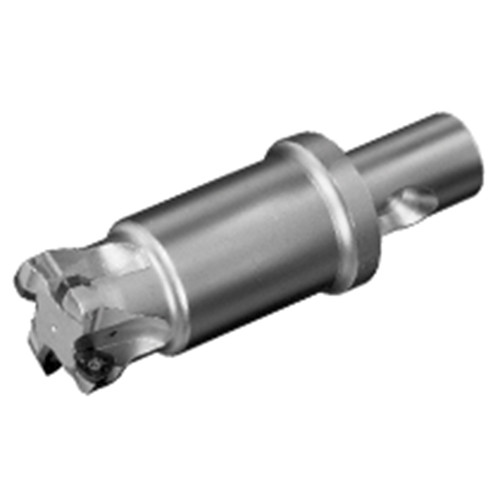

FF EW D1.5-2.5-CF4-09-C
Indexable End Mill; 0.68″ Dia. × 0.079″ LOC × 1.732″ Shank Dia. × 4.47″ OAL × 2.38″ LU ; 3 FL ; CLICKFIT Shank ; 13 Degrees

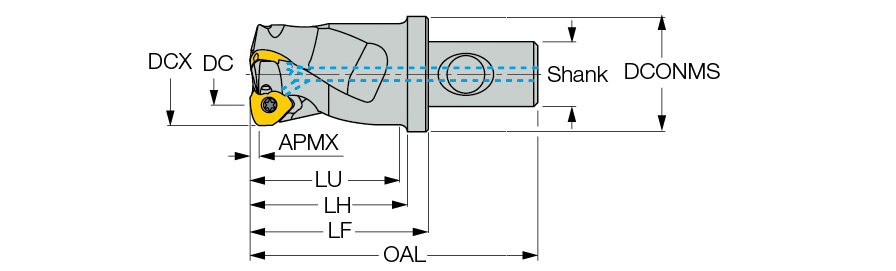

| Cutting Diameter (DC/DCX) | 0.68″ | Functional Length (LF) | 2.81″ |
| Cutting Diameter (DC) | 0.68″ | Tool Type | Fast Feed Endmill |
| Cutting Item Count (CICT) | 3 | Usable Length (LU) | 2.38″ |
| Depth of Cut Maximum (APMX) | 0.079″ | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 4.47″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | CLICKFIT | Tool Cutting Edge Angle (KAPR) | 13 Degrees |
| Ramping Angle Maximum (RMPX) | 5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Rampdown | Side Plunging | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.732″ | Body Material | Steel |
| Master Insert Identification (MIID) | FF WOMT09T3 | Connection Code Machine Side (CCMS) | CLICKFIT |
| Weight of Item (WT) | 1.17 Lbs | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Head Length (LH) | 2-1/2″ |
Product Features
| Family Description | FEEDMILL endmill with a CLICKFIT adaptation using FF WOMT inserts used for very high metal removal rates - up to .059 ipt feed at small depths of cut. | Country of Origin | Israel |
| Remarks | For user guide, click on More Info |
