HP E90AT-D1.5-2-W125-22

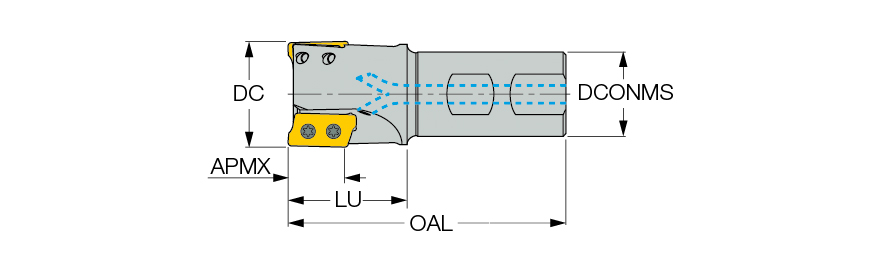

Indexable End Mill; 1-1/2″ Dia. × 0.83″ LOC × 1-1/4″ Shank Dia. × 4.05″ OAL × 1.77″ LU ; 4 FL ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 1-1/2″ | Tool Type | 90° Indexable End Mill |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 1.77″ |
| Depth of Cut Maximum (APMX) | 0.83″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 4.05″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | 90° endmills carrying HP AD.. 2207.. inserts with 22 mm long and helical cutting edges. | Country of Origin | Israel |
| Remarks | First loosely attach the inner clamping screw, then the outer one. In the same order tighten them both. For adaptation, click on "More Info" |
Shipping Info
Package Weight
1.236
