35112 1/4X1/4X3/4X2-1/2 E

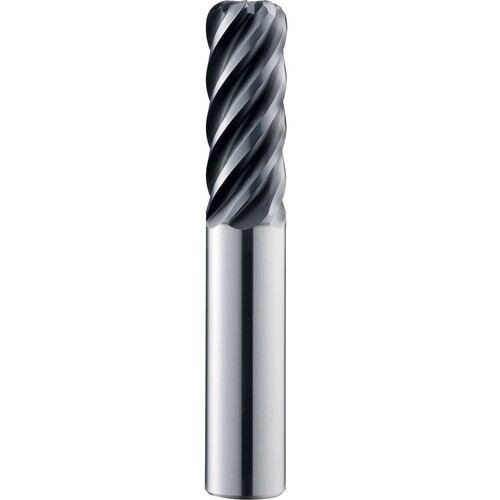

SQ End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 0.015″ RE ; 6 FL ; 1-3/4″ LBS ; Carbide ; AlTiN ; Series T-CARB
| Cutting Diameter (DC) | 1/4″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3/4″ | Usable Length (LU) | 1-3/4″ |
| Overall Length (OAL) | 2-1/2″ | Corner Radius (RE) | 0.015″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Decimal Equivalent | 0.25″ |
| Flute Helix Angle (FHA) | 41 Degrees | Series/List # | T-CARB |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.059
