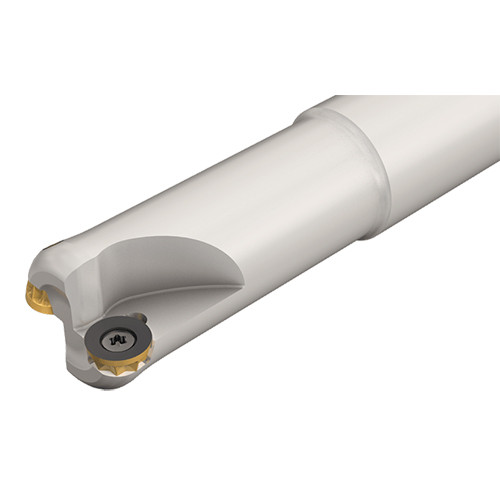

ER D087A150-3-C1.25-16
Indexable End Mill; 0.87″ Dia. × 0.157″ LOC × 1-1/4″ Shank Dia. × 6.3″ OAL ; Round Shank

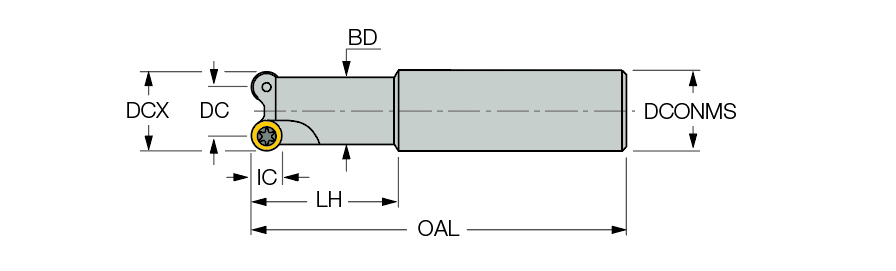

| Cutting Diameter (DC/DCX) | 0.87″ | Head Length (LH) | 1.97″ |
| Cutting Diameter (DC) | 0.87″ | Tool Type | Round corner cutters |
| Cutting Item Count (CICT) | 3 | Body Diameter (BD) | 1.181″ |
| Depth of Cut Maximum (APMX) | 0.157″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 6.3″ | Front Type | A |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | RCCW 1605 | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Weight of Item (WT) | 1.96 Lbs |
Product Features
| Family Description | Endmills with round inserts for profiling and milling round corners (ROUNDMILL). | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
2.255
