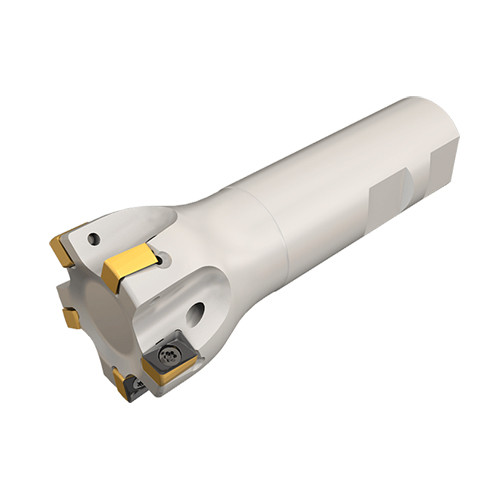

H490 E90AX D1.0-3-W.75-09
Indexable End Mill; 1″ Dia. × 0.315″ LOC × 3/4″ Shank Dia. × 3.38″ OAL ; 3 FL ; Weldon Shank ; 90 Degrees

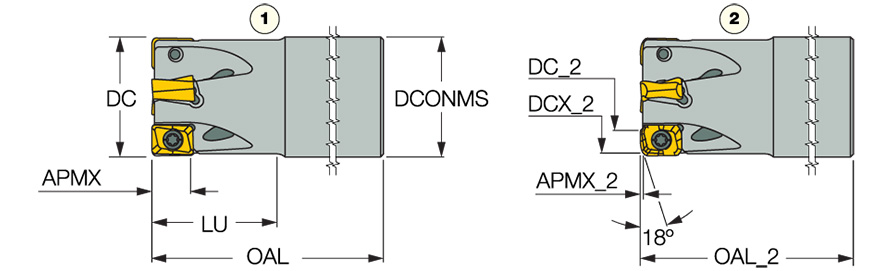

| Cutting Diameter (DC/DCX) | 1″ | Head Length (LH) | 1.24″ |
| Cutting Diameter (DC) | 1″ | Functional Length (LF) | 2.364″ |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.315″ | Usable Length (LU) | 1.24″ |
| Overall Length (OAL) | 3.38″ | Flute Count (NOF) | 3 |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Shouldering | Side Plunging | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | H490 ANKX 0904 | Body Material | Steel |
| Weight of Item (WT) | 0.44 Lbs | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | 90° endmills carrying H490 ANKX 09... double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info B Suffix cylindrical shank which may be shortened 1- with standard square insert 2- with FF (fast feed) insert When assembled the H490 ANKX 0904R12T-FF insert, tool diameter enlarges by .004 |
Shipping Info
Package Weight
0.540
