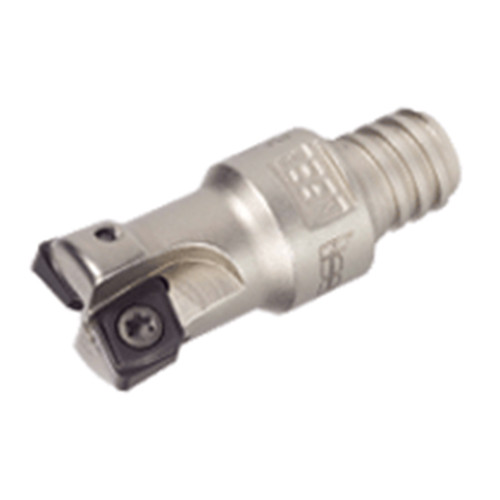

E93CN D.75-3-MMT12-07
Indexable End Mill; 3/4″ Dia. × 0.2″ LOC × 0.7″ Shank Dia. × 1.545″ OAL ; 93 Degrees

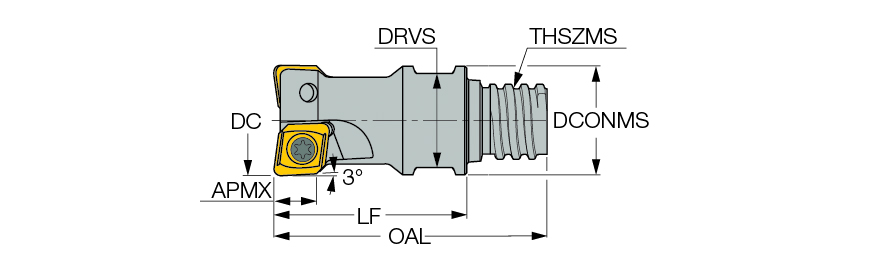

| Cutting Diameter (DC/DCX) | 3/4″ | Functional Length (LF) | 1.021″ |
| Cutting Diameter (DC) | 3/4″ | Tool Type | Toroidal endmills |
| Cutting Item Count (CICT) | 3 | Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Depth of Cut Maximum (APMX) | 0.2″ | Drive Size (DRVS) | 0.63″ |
| Overall Length (OAL) | 1.545″ | Coolant Supply Property (CSP) | External |
| Ramping Angle Maximum (RMPX) | 3 Degrees | Tool Cutting Edge Angle (KAPR) | 93 Degrees |
| Application | | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Undercutting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.7″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | CNHT 070315 | Body Material | Steel |
| Weight of Item (WT) | 0.1 Lbs | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | Endmills with MULTI-MASTER threaded adaptation carrying toroidal inserts (TORMILL). Used for undercutting, for the finish cut of steep or vertical walls, thin walls, long and unsupported workpieces and parts with non-rigid clamping. | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection For adaptation, click on More Info |
Shipping Info
Package Weight
0.214
