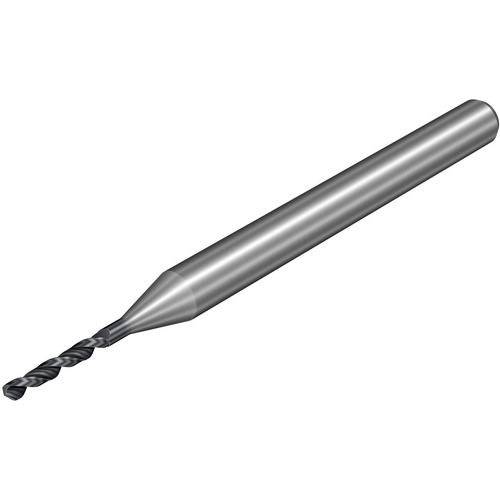

46212020125A0XMX2BM DRILL
SC Drill; 2.02 mm Dia. × 3 mm Shank Dia. × 38 mm OAL × 14 mm LCF ; 130 Degrees ; 6xD
| Drill Bit Size / Cutting Diameter (DC) | 2.02 mm | Functional Length (LF) | 37.53 mm |
| Length Group | 6xD | Grade | X2BM |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 12.5 mm |
| Point Angle (SIG) | 130 Degrees | Length Chip Flute (LCF) | 14 mm |
| Point Length (PL) | 0.47 mm | Overall Length (OAL) | 38 mm |
Product Features
| Country of Origin | SWITZERLAND |
Shipping Info
Package Weight
0.022
