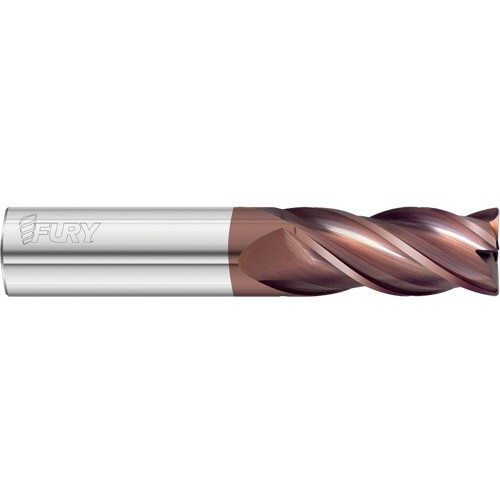

Square End Mill; 20 mm Dia. × 50 mm LOC × 20 mm Shank Dia. × 125 mm OAL ; 4 FL ; Carbide ; FC20 ; Series 3500
SQ End Mill; 20 mm Dia. × 50 mm LOC × 20 mm Shank Dia. × 125 mm OAL ; 4 FL ; Carbide ; Series 3500
| Cutting Diameter (DC) | 20 mm | Flute Helix Angle (FHA) | Variable |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 50 mm | End Shape | Square |
| Overall Length (OAL) | 125 mm | Tool Type | Single-End |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | FC20 | Decimal Equivalent | 0.7874″ |
| Flute Count (NOF) | 4 | Series/List # | 3500 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.050
