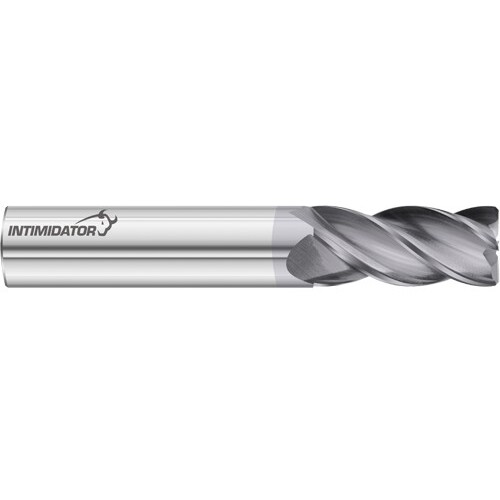

Chamfer End Mill; 1″ Dia. × 2″ LOC × 1″ Shank Dia. × 5″ OAL ; 4 FL ; Carbide ; FC18 ; Series 3000
SQ End Mill; 1″ Dia. × 2″ LOC × 1″ Shank Dia. × 5″ OAL ; 4 FL ; Carbide ; Series 3000
| Cutting Diameter (DC) | 1″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1″ | End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 2″ | Corner Chamfer Width (CHW) | 0.02″ |
| Overall Length (OAL) | 5″ | Tool Type | Single-End |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | FC18 | Decimal Equivalent | 1″ |
| Flute Count (NOF) | 4 | Series/List # | 3000 |
| Flute Helix Angle (FHA) | 38 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.770
