DH0910035T1R01 IN2005

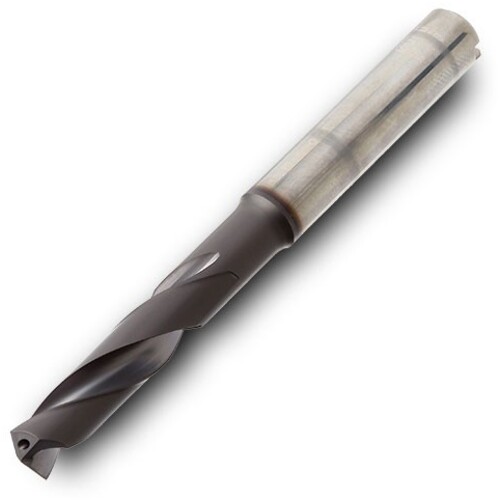

SC Drill; 6.7 mm Dia. × 0.39 mm Shank Dia. × 89 mm OAL × 35 mm LCF ; 118 Degrees ; Jobber ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 6.7 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3583″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.7 mm | Grade | IN2005 |
| Length Group | Jobber | Measurement Type | Inch |
| Coating | TiAlN | Series/List # | 2464 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Usable Length (LU) | 35 mm |
| Connection Diameter Machine Side (DCONMS) | 0.39 mm | Length Chip Flute (LCF) | 35 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 89 mm |
| Point Angle (SIG) | 118 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shape | Solid Carbide |
Product Features
| Family Description | L:D Ratio - 3:1 Geometry: 140 deg. included pt. angle, 30 deg. axial rake angle with coolant holes | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.154
