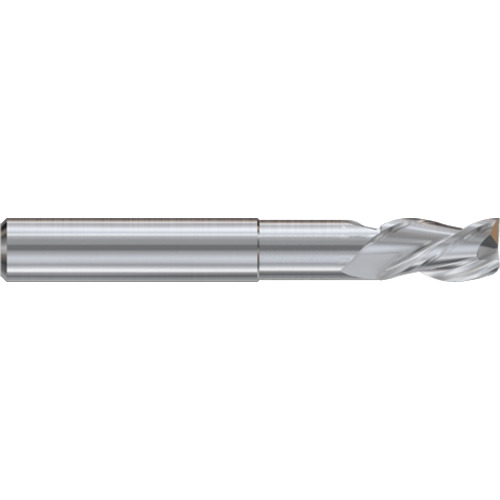

Square End End Mill; 3/8″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; Bright ; Series E5G96
SQ End Mill; 3/8″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 3 FL ; 2-1/8″ LBS ; Carbide ; Uncoated ; Series E5G96
| Cutting Diameter (DC) | 3/8″ | Usable Length (LU) | 2-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | 3 Flute With Neck |
| Overall Length (OAL) | 4″ | Style | Square End With Neck |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.375″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | E5G96 |
| Flute Helix Angle (FHA) | 37 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Square End |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
0.75
Package Height
0.75
Package Weight
0.219
