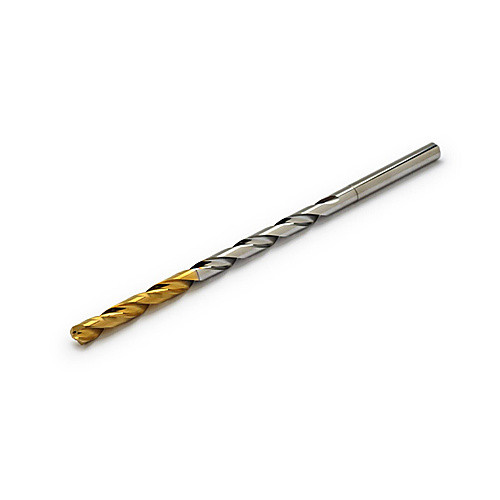

3/8″ Dia. × 10 mm Shank × 172 mm Flute Length × 216 mm OAL, 16xD, 136°, TiN|TiAlN, 16xD Flute, Coolant Thru, Round Solid Carbide Drill
SC Drill; 3/8″ Dia. × 10 mm Shank Dia. × 216 mm OAL × 172 mm LCF ; 136 Degrees ; 16xD ; | TiAlN | TiN |
| Drill Bit Size / Cutting Diameter (DC) | 3/8″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/8″ | Shape | Solid Carbide |
| Decimal Equivalent | 0.375″ | Cutting Edge Material | Carbide |
| Length Group | 16xD | Tool Type | Solid Carbide Drills |
| Coating | | TiAlN | TiN | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Usable Length (LU) | 150 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 172 mm |
| Point Angle (SIG) | 136 Degrees | Overall Length (OAL) | 216 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.287
