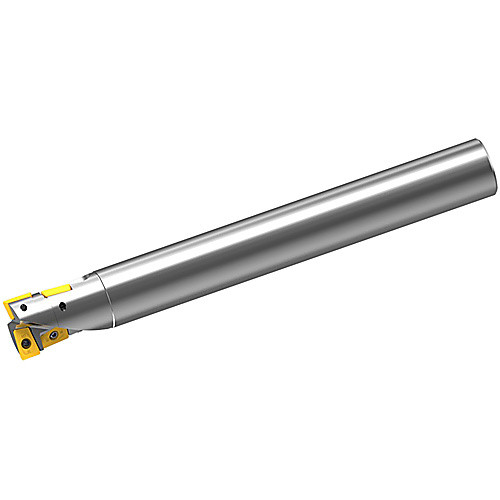

AQXUR174SA16L INDEXABLE ENDMILL
Indexable End Mill; 1.047″ Dia. × 1″ LOC × 1″ Shank Dia. ; 2 FL ; 90 Degrees ; Series AQX_INCH
| Cutting Diameter (DC/DCX) | 1.047″ | Functional Length (LF) | 8-1/2″ |
| Cutting Diameter (DC) | 1.047″ | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 1″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Series/List # | AQX_INCH |
| Head Length (LH) | 1-5/8″ | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.4
