DMX074S AH170

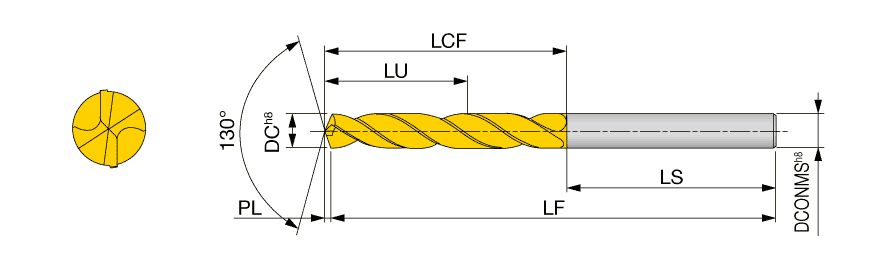

SC Drill; 7.4 mm Dia. × 7.4 mm Shank Dia. × 75.73 mm OAL × 34 mm LCF ; 130 Degrees ; 5xD ; TiAlN ; Series 2464
| Drill Bit Size / Cutting Diameter (DC) | 7.4 mm | Shape | Jobber Drill |
| Decimal Equivalent | 0.2913″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.4 mm | Tool Type | solid carbide Drills |
| Length Group | 5xD | Grade | AH170 |
| Coating | TiAlN | Measurement Type | Metric |
| Application | Drilling | Series/List # | 2464 |
| Connection Diameter Machine Side (DCONMS) | 7.4 mm | Usable Length (LU) | 35.7 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 34 mm |
| Point Angle (SIG) | 130 Degrees | Overall Length (OAL) | 75.73 mm |
| Point Length (PL) | 1.73 mm | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 40 mm | Body Material | Carbide |
| Shank Type | Round |
Product Features
| Family Description | Solid carbide drill without coolant hole, L/D=2, dia=3.0 - 20.0mm | Country of Origin | Japan |
| Remarks | Cutting fluid should be sufficiently supplied to the drill point and the entrance of the hole. Use a water soluble cutting fluid. |
Shipping Info
Package Weight
0.097
