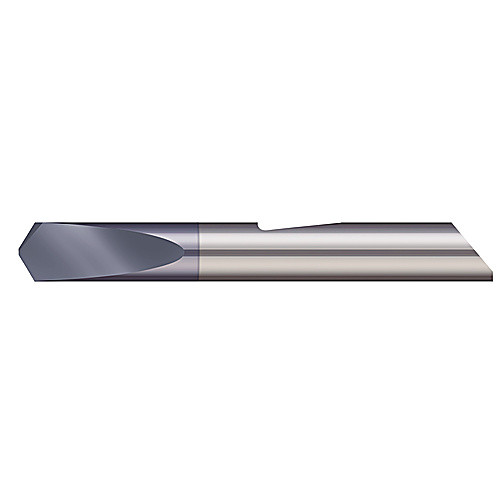

QSD-156X 3/16 Shank Dia × 2 OAL "Quik" 118 Degree Included Angle Spade Drill - AlTiN
SC Drill; 5/32″ Dia. × 3/16″ Shank Dia. × 2″ OAL × 0.467″ LCF ; 118 Degrees ; AlTiN
| Drill Bit Size / Cutting Diameter (DC) | 5/32″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/32″ | Shape | Spade Drill |
| Decimal Equivalent | 0.1563″ | Cutting Edge Material | Carbide |
| Coating | AlTiN | Tool Type | Solid Carbide Drills |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Measurement Type | Inch |
| Point Angle (SIG) | 118 Degrees | Usable Length (LU) | 0.467″ |
| Functional Length (LF) | 0.467″ | Length Chip Flute (LCF) | 0.467″ |
| Flute Helix Angle (FHA) | 16 Degrees | Overall Length (OAL) | 2″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
