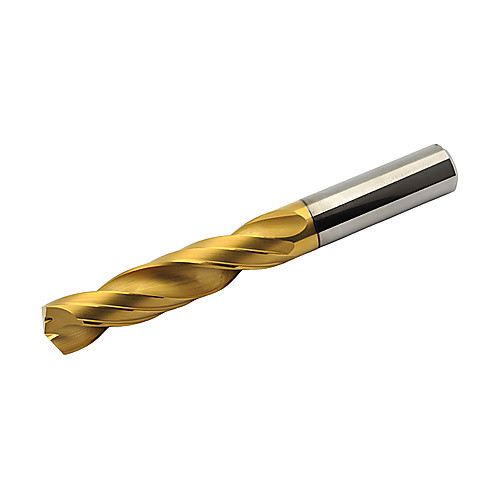

SD265A-04997-221-0551R1
SC Drill; 1/2″ Dia. × 14 mm Shank Dia. × 124 mm OAL × 77 mm LCF ; 140 Degrees ; 5xD ; | TiAlN | TiN |
| Drill Bit Size / Cutting Diameter (DC) | 1/2″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/2″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5″ | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | | TiAlN | TiN | | Usable Length (LU) | 56 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 77 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Overall Length (OAL) | 124 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 5 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.454
