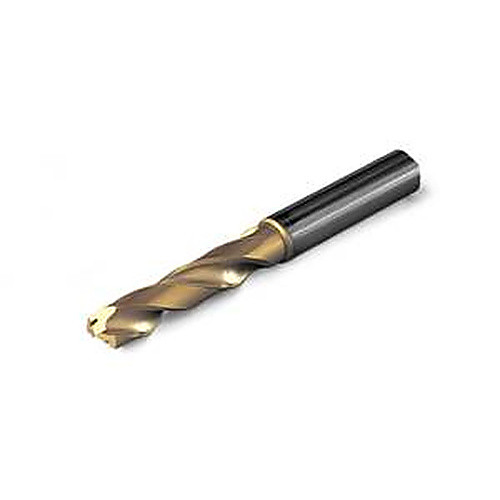

10 mm Dia. × 10 mm Shank × 47 mm Flute Length × 89 mm OAL, 3xD, 140°, TiAlN, 3xD Flute, Coolant Thru, Round Solid Carbide Drill
SC Drill; 10 mm Dia. × 10 mm Shank Dia. × 89 mm OAL × 47 mm LCF ; 140 Degrees ; 3xD ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 10 mm | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10 mm | Cutting Edge Material | Carbide |
| Length Group | 3xD | Tool Type | Solid Carbide Drills |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Stainless Steel | | Usable Length (LU) | 31 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Length Chip Flute (LCF) | 47 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 89 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.157
