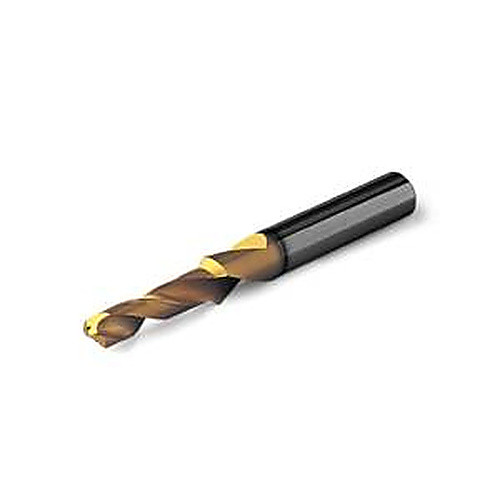

SD203A-C45-8.7-25.512R1
SC Drill; 8.7 mm Dia. × 12 mm Shank Dia. × 102 mm OAL × 47 mm LCF ; 140 Degrees ; 3xD ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 8.7 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.7 mm | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | TiAlN | Usable Length (LU) | 25.5 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Length Chip Flute (LCF) | 47 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 102 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Shape | Solid Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.258
