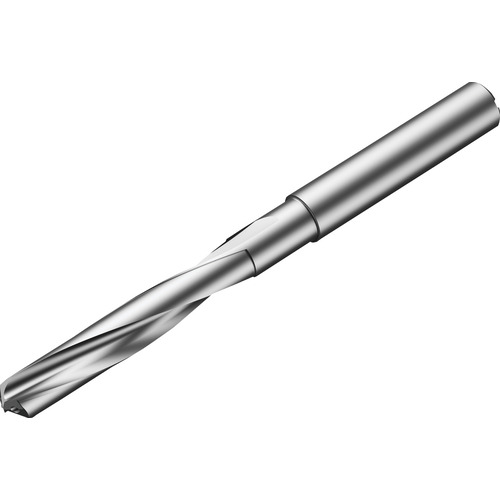

0.281″ Dia. × 0.315″ Shank × 3.15″ Flute Length × 4.76″ OAL, 8xD, 130°, Uncoated, 2xD Flute, Coolant Thru, Round Solid Carbide Drill
SC Drill; 0.281″ Dia. × 0.315″ Shank Dia. × 4.76″ OAL × 3.15″ LCF ; 130 Degrees ; 8xD ; Uncoated
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 0.281″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/32″ | Shape | Solid Carbide |
| Decimal Equivalent | 0.281″ | Cutting Edge Material | Carbide |
| Length Group | 8xD | Tool Type | Solid Carbide Drills |
| Coating | Uncoated | Grade | H10F |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Usable Length (LU) | 2.29″ |
| Coolant Supply Property (CSP) | Internal | Length Chip Flute (LCF) | 3.15″ |
| Point Angle (SIG) | 130 Degrees | Overall Length (OAL) | 4.76″ |
| Flute Helix Angle (FHA) | 13.5 Degrees |
Product Features
| Country of Origin | Sweden |
Shipping Info
Hazard Code
W
Shipping Notes
Weighted Item. Additional Costs Apply.
Package Weight
.143
