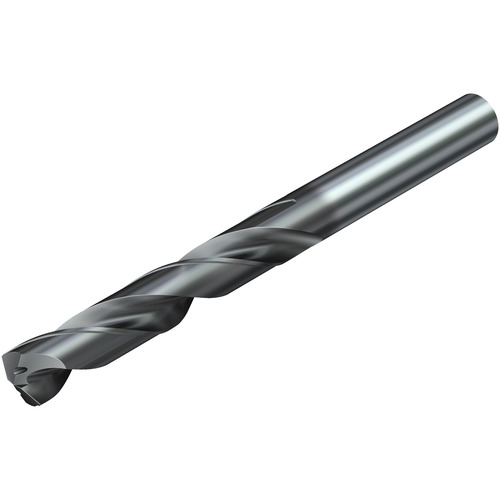

6.05 mm Dia. × 8 mm Shank × 53 mm Flute Length × 91 mm OAL, 5xD, 140°, TiAlN, 2xD Flute, Coolant Thru, DIN 6537 L, Round Solid Carbide Drill
SC Drill; 6.05 mm Dia. × 8 mm Shank Dia. × 91 mm OAL × 53 mm LCF ; 140 Degrees ; 5xD ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 6.05 mm | Shank Type | Round |
| Decimal Equivalent | 0.2382″ | Shank Standard | DIN 6537 L |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.05 mm | Cutting Edge Material | Carbide |
| Length Group | 5xD | Tool Type | Solid Carbide Drills |
| Coating | TiAlN | Grade | GC34 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Usable Length (LU) | 31.1 mm |
| Coolant Supply Property (CSP) | Internal | Length Chip Flute (LCF) | 53 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 91 mm |
| Flute Helix Angle (FHA) | 23.6 Degrees | Flute Count (NOF) | 2 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.106
