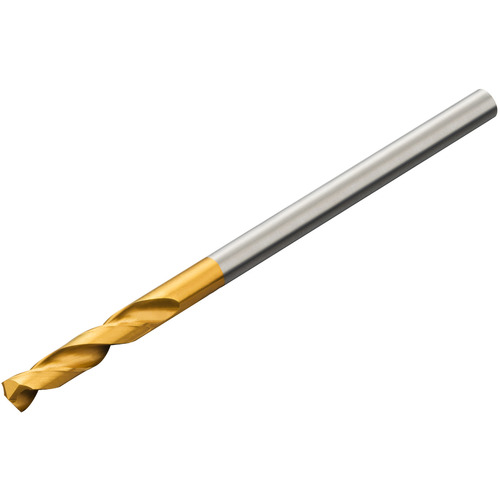

1.8 mm Dia. × 1.8 mm Shank × 11 mm Flute Length × 36 mm OAL, 140°, 2xD Flute, External Coolant, Round Solid Carbide Drill
Solid Carbide Drill; 1.8 mm Dia. × 1.8 mm Shank Dia. × 36 mm OAL × 11 mm LCF ; 140 Degrees
| Drill Bit Size / Cutting Diameter (DC) | 1.8 mm | Shank Type | Round |
| Decimal Equivalent | 0.0709″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1.8 mm | Cutting Edge Material | Carbide |
| Applicable Material | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Tool Type | Solid Carbide Drills |
| Connection Diameter Machine Side (DCONMS) | 1.8 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 7.5 mm |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 11 mm |
| Flute Helix Angle (FHA) | 29.5 Degrees | Overall Length (OAL) | 36 mm |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
.022
