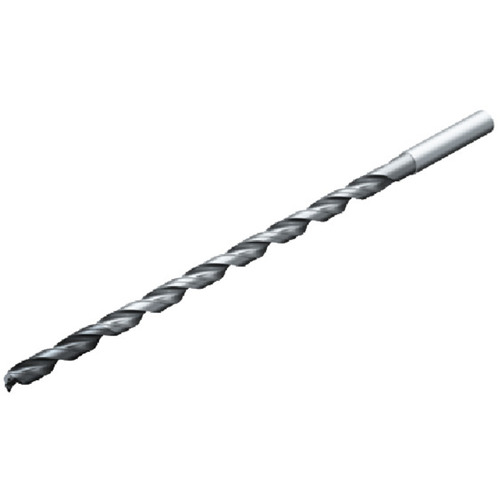

10 mm Dia. × 10 mm Shank × 180 mm Flute Length × 226 mm OAL, 15xD, 140°, TiAlN, 2xD Flute, Coolant Thru, Round Solid Carbide Drill
SC Drill; 10 mm Dia. × 10 mm Shank Dia. × 226 mm OAL × 180 mm LCF ; 140 Degrees ; 15xD ; TiAlN
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 10 mm | Shank Type | Round |
| Decimal Equivalent | 0.3937″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10 mm | Cutting Edge Material | Carbide |
| Length Group | 15xD | Tool Type | Solid Carbide Drills |
| Coating | TiAlN | Grade | GC34 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Usable Length (LU) | 151.6 mm |
| Coolant Supply Property (CSP) | Internal | Length Chip Flute (LCF) | 180 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 226 mm |
| Flute Helix Angle (FHA) | 34.3 Degrees |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.419
