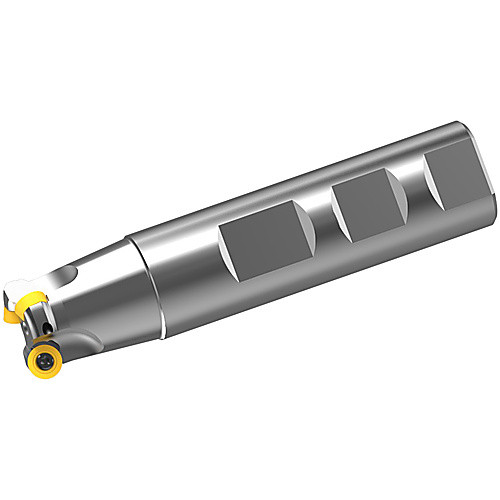

BRP3UNR163W16 INDEXABLE ENDMILL
Indexable End Mill; 0.681″ Dia. × 0.146″ LOC × 1″ Shank Dia. ; Series BRP_INCH
| Cutting Diameter (DC/DCX) | 0.681″ | Functional Length (LF) | 4-1/2″ |
| Cutting Diameter (DC) | 0.681″ | Corner Radius (RE) | 0.156″ |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.146″ | Series/List # | BRP_INCH |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Head Length (LH) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.4000
