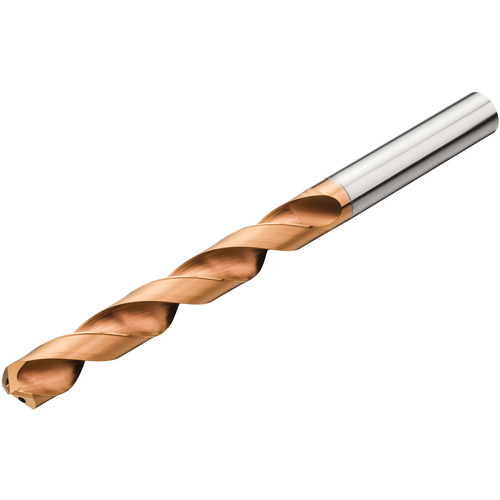

5.16 mm Dia. × 6 mm Shank × 50 mm Flute Length × 93 mm OAL, 140°, TiAlN, 2xD Flute, Coolant Thru, Round Solid Carbide Drill
SC Drill; 5.16 mm Dia. × 6 mm Shank Dia. × 93 mm OAL × 50 mm LCF ; 140 Degrees ; 7xD ; TiAlN
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 5.16 mm | Flute Helix Angle (FHA) | 28.4 Degrees |
| Decimal Equivalent | 0.2031″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.16 mm | Shape | Solid Carbide |
| Length Group | 7xD | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | Solid Carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 37 mm |
| Coolant Supply Property (CSP) | Internal | Length Chip Flute (LCF) | 50 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 93 mm |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.082
