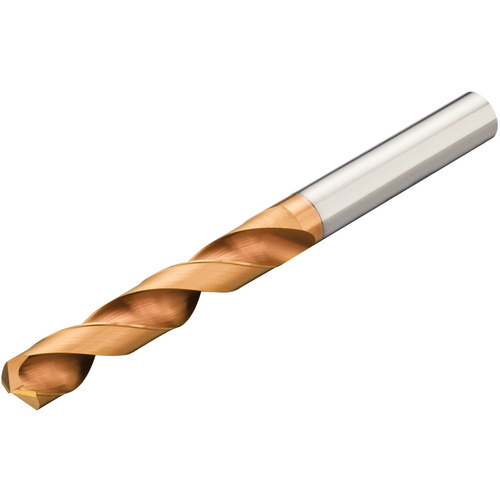

16 mm Dia. × 16 mm Shank × 83 mm Flute Length × 133 mm OAL, 140°, TiAlN, 2xD Flute, External Coolant, DIN 6537 L, Round Solid Carbide Drill
SC Drill; 16 mm Dia. × 16 mm Shank Dia. × 133 mm OAL × 83 mm LCF ; 140 Degrees ; TiAlN
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 16 mm | Shank Type | Round |
| Decimal Equivalent | 0.6299″ | Shank Standard | DIN 6537 L |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 16 mm | Shape | Solid Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Tool Type | Solid Carbide Drills |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 67 mm |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 83 mm |
| Flute Helix Angle (FHA) | 31.1 Degrees | Overall Length (OAL) | 133 mm |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.661
