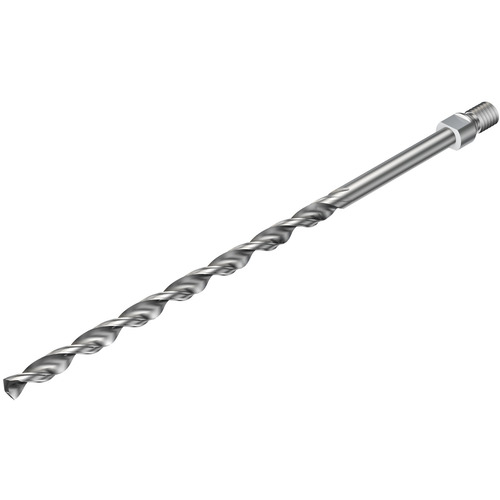

6.35 mm Dia. × 5/16″ Shank × 101.6 mm Flute Length × 152.4 mm OAL, 135°, Uncoated, 2xD Flute, Coolant Thru, Threaded Shank Solid Carbide Drill
SC Drill; 6.35 mm Dia. × 5/16″ Shank Dia. × 152.4 mm OAL × 101.6 mm LCF ; 135 Degrees ; 12xD ; Uncoated
| Drill Bit Size / Cutting Diameter (DC) | 6.35 mm | Shank Type | Threaded |
| Decimal Equivalent | 0.25″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.35 mm | Cutting Edge Material | Carbide |
| Length Group | 12xD | Tool Type | Solid Carbide Drills |
| Coating | Uncoated | Grade | H10F |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Usable Length (LU) | 88.6 mm |
| Coolant Supply Property (CSP) | Internal | Length Chip Flute (LCF) | 101.6 mm |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 152.4 mm |
| Flute Helix Angle (FHA) | 24 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.134
