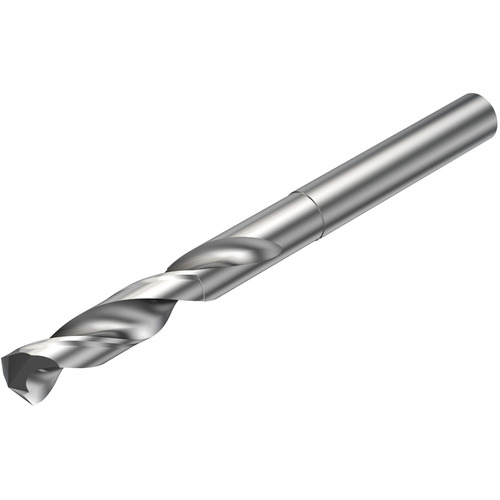

4.83 mm Dia. × 5 mm Shank × 28 mm Flute Length × 58 mm OAL, 135°, Uncoated, 2xD Flute, Coolant Thru, Round Solid Carbide Drill
SC Drill; 4.83 mm Dia. × 5 mm Shank Dia. × 58 mm OAL × 28 mm LCF ; 135 Degrees ; Uncoated
| Drill Bit Size / Cutting Diameter (DC) | 4.83 mm | Shank Type | Round |
| Decimal Equivalent | 0.1902″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.83 mm | Cutting Edge Material | Carbide |
| Coating | Uncoated | Tool Type | Solid Carbide Drills |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | H10F |
| Connection Diameter Machine Side (DCONMS) | 5 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Internal | Usable Length (LU) | 20 mm |
| Point Angle (SIG) | 135 Degrees | Length Chip Flute (LCF) | 28 mm |
| Flute Helix Angle (FHA) | 24 Degrees | Overall Length (OAL) | 58 mm |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.037
