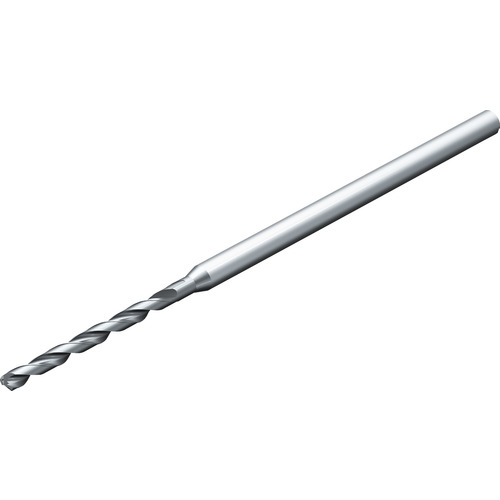

2.5 mm Dia. × 3 mm Shank × 36 mm Flute Length × 78 mm OAL, 12xD, 140°, TiAlN, 2xD Flute, Coolant Thru, Round Solid Carbide Drill
Solid Carbide Drill; 2.5 mm Dia. × 3 mm Shank Dia. × 78 mm OAL × 36 mm LCF ; 140 Degrees ; 12xD ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 2.5 mm | Shank Type | Round |
| Decimal Equivalent | 0.0984″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.5 mm | Cutting Edge Material | Carbide |
| Length Group | 12xD | Tool Type | Solid Carbide Drills |
| Coating | TiAlN | Grade | GC34 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 29.8 mm |
| Coolant Supply Property (CSP) | Internal | Length Chip Flute (LCF) | 36 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 78 mm |
| Flute Helix Angle (FHA) | 32.1 Degrees |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.029
