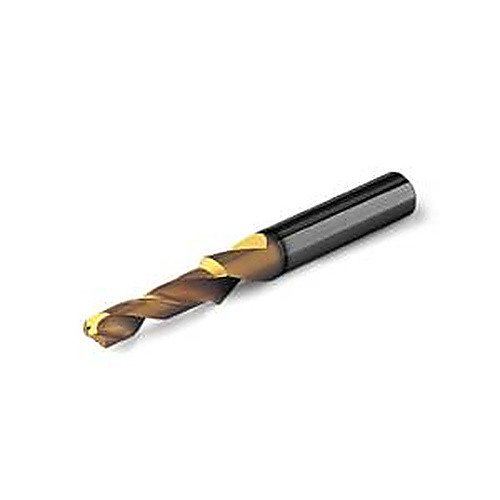

9 mm Dia. × 12 mm Shank × 47 mm Flute Length × 102 mm OAL, 3xD, 140°, TiAlN, 3xD Flute, Coolant Thru, Whistle Notch Solid Carbide Drill
SC Drill; 9 mm Dia. × 12 mm Shank Dia. × 102 mm OAL × 47 mm LCF ; 140 Degrees ; 3xD ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 9 mm | Shank Type | Whistle Notch |
| Decimal Equivalent | 0.3543″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9 mm | Cutting Edge Material | Carbide |
| Length Group | 3xD | Tool Type | Solid Carbide Drills |
| Coating | TiAlN | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Usable Length (LU) | 25.5 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 47 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 102 mm |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.309
