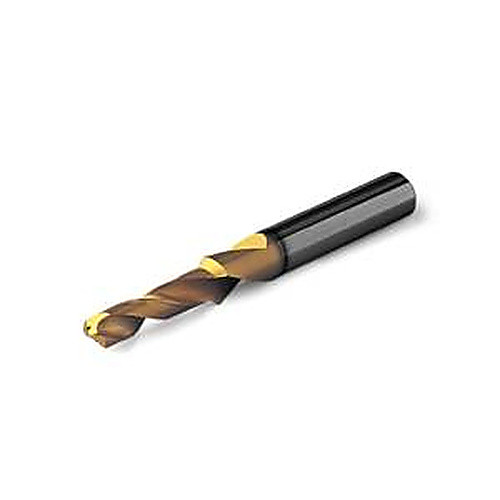

12.25 mm Dia. × 16 mm Shank × 60 mm Flute Length × 115 mm OAL, 3xD, 140°, TiAlN, 3xD Flute, Coolant Thru, Whistle Notch Solid Carbide Drill
SC Drill; 12.25 mm Dia. × 16 mm Shank Dia. × 115 mm OAL × 60 mm LCF ; 140 Degrees ; 3xD ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 12.25 mm | Shank Type | Whistle Notch |
| Decimal Equivalent | 0.4823″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12.25 mm | Cutting Edge Material | Carbide |
| Length Group | 3xD | Tool Type | Solid Carbide Drills |
| Coating | TiAlN | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Usable Length (LU) | 34.5 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 60 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 115 mm |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.542
