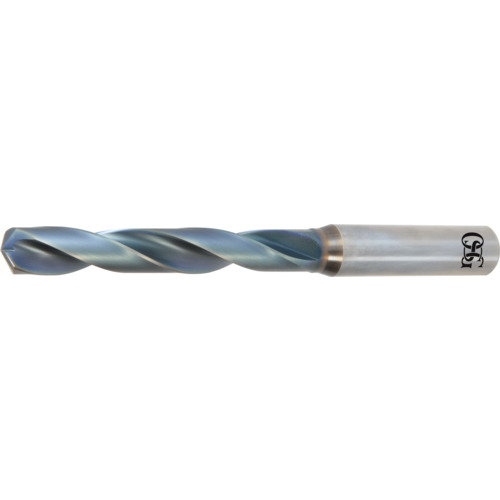

14.7 mm Dia. × 7/16″ Shank × 83 mm Flute Length × 133 mm OAL, TiAlN, 2xD Flute, Solid Carbide Drill
SC Drill; 14.7 mm Dia. × 7/16″ Shank Dia. × 133 mm OAL × 83 mm LCF ; 140 Degrees ; Jobber ; Spiral Flute ; EgiAs ; Series HP245
| Drill Bit Size / Cutting Diameter (DC) | 14.7 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 14.7 mm | Tool Type | Jobber Drill |
| Length Group | Jobber | Flute Type | Spiral |
| Coating | EgiAs | Measurement Type | Metric |
| Applicable Material | | Hard Materials | Aluminum / Non-Ferrous Materials | | Series/List # | HP245 |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Usable Length (LU) | 83 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 83 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 133 mm |
| Functional Length (LF) | 83 mm | Flute Count (NOF) | 2 |
| Shape | Jobber Drill | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
5.60000
Package Width
.85000
Package Height
.80000
Package Weight
0.6150
