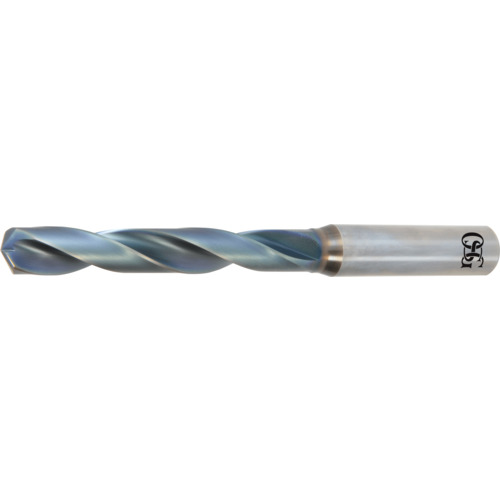

15 mm Dia. x I Shank × 83 mm Flute Length × 133 mm OAL, 5xD, TiAlN, 2xD Flute, Solid Carbide Drill
SC Drill; 15 mm Dia. x I Shank Dia. × 133 mm OAL × 83 mm LCF ; 140 Degrees ; 5xD ; Spiral Flute ; EgiAs ; Series HP245
| Drill Bit Size / Cutting Diameter (DC) | 15 mm | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 15 mm | Flute Type | Spiral |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | HP245 |
| Applicable Material | | Hard Materials | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 83 mm |
| Connection Diameter Machine Side (DCONMS) | I | Length Chip Flute (LCF) | 83 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 133 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 83 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
5.30000
Package Width
.80000
Package Height
.80000
Package Weight
0.6200
